Audio/Power Module

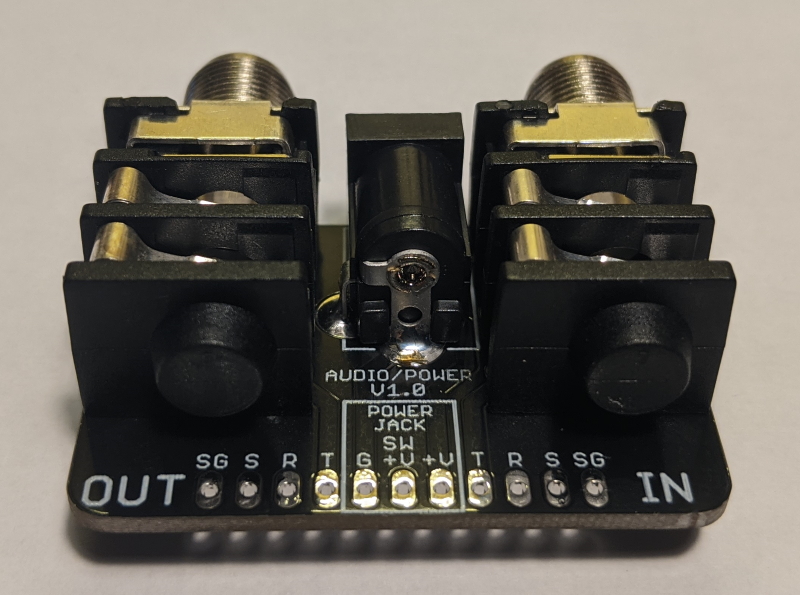

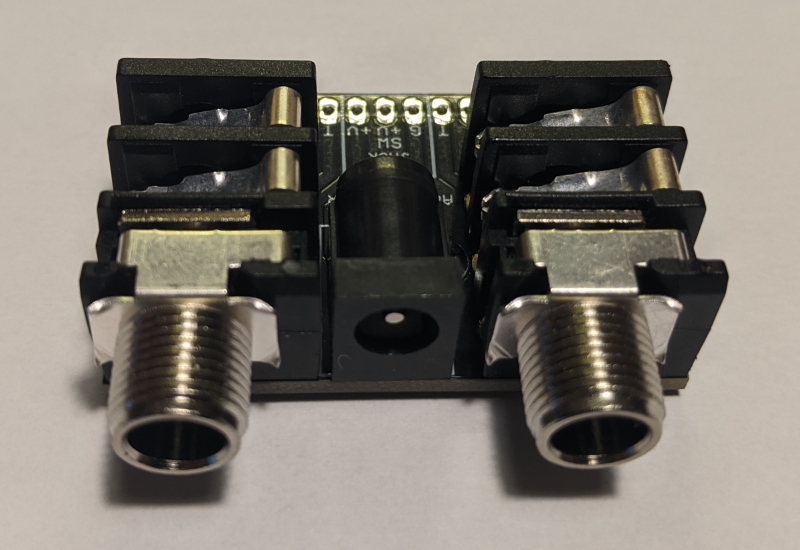

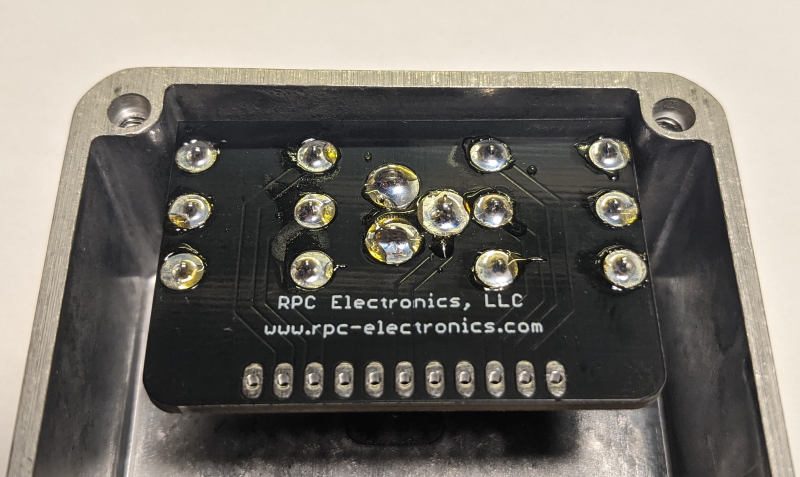

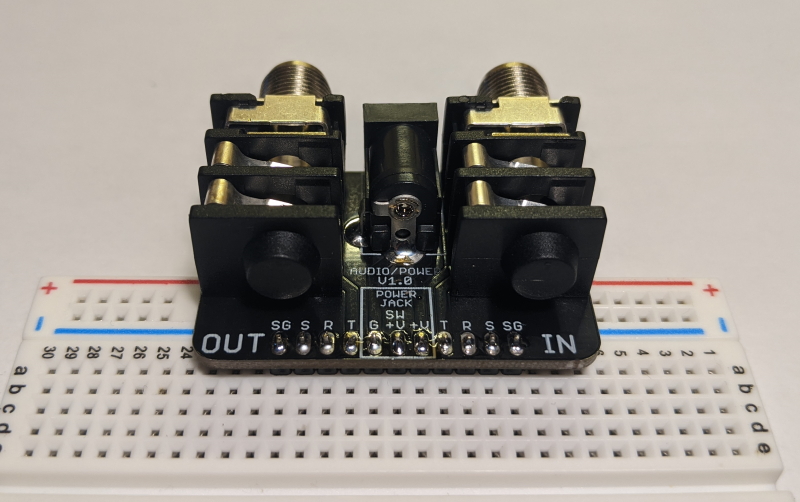

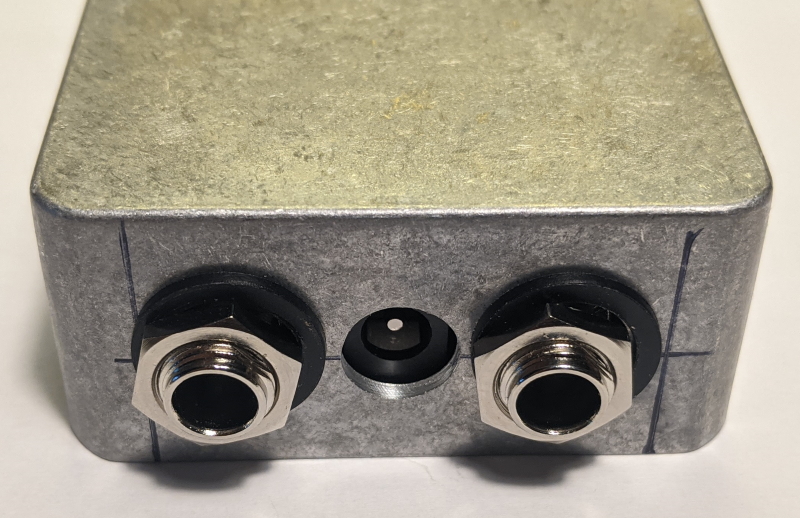

The Audio/Power Module is our simple solution to breaking out the connections of two 1/4" stereo jacks and a single coaxial power jack commonly used on effects pedals. Labeled for easy connection to all three jack contacts, TIP, RING and SHIELD and power +V, SW +V and GROUND. Power is configured for standard center pin ground. The module is sized specifically to fit the narrow end of a standard Hammond 1590B housing. Larger housings will also work. A drilling template is provided for download. Available with or without the 0.1" installed headers compatible with any standard breadboard for easy prototype building. See pricing at the bottom of the page.

Audio/Power Module - Without 0.1" Headers - $8.00 + Shipping --- Part #GPAPMWOH

Audio/Power Module - With 0.1" Headers - $9.00 + Shipping --- Part #GPAPMWH
