Track Bus Feeder Modules


Our Track Bus Feeder Modules are perfect for wiring up any layout small to big. It's scalable, meaning you can add as many as you need to accommodate the size of your layout and number of lines, sidings, spurs, ect. By simply matching the plus (+) and minus (-) symbols on the modules with the inner or outer rail of your track, the feeders are guaranteed to avoid crossing power or signal from one track section to the next. See the diagram at the bottom showing a basic linear track layout.

Track Bus Feeder Module - Four Pack - $10.00 + Shipping --- Part #MRRTBF4

Track Bus Feeder Module - Ten Pack - $25.00 + Shipping --- Part #MRRTBF10

Track Bus Feeder Module - Twenty Pack - $45.00 + Shipping --- Part #MRRTBF20

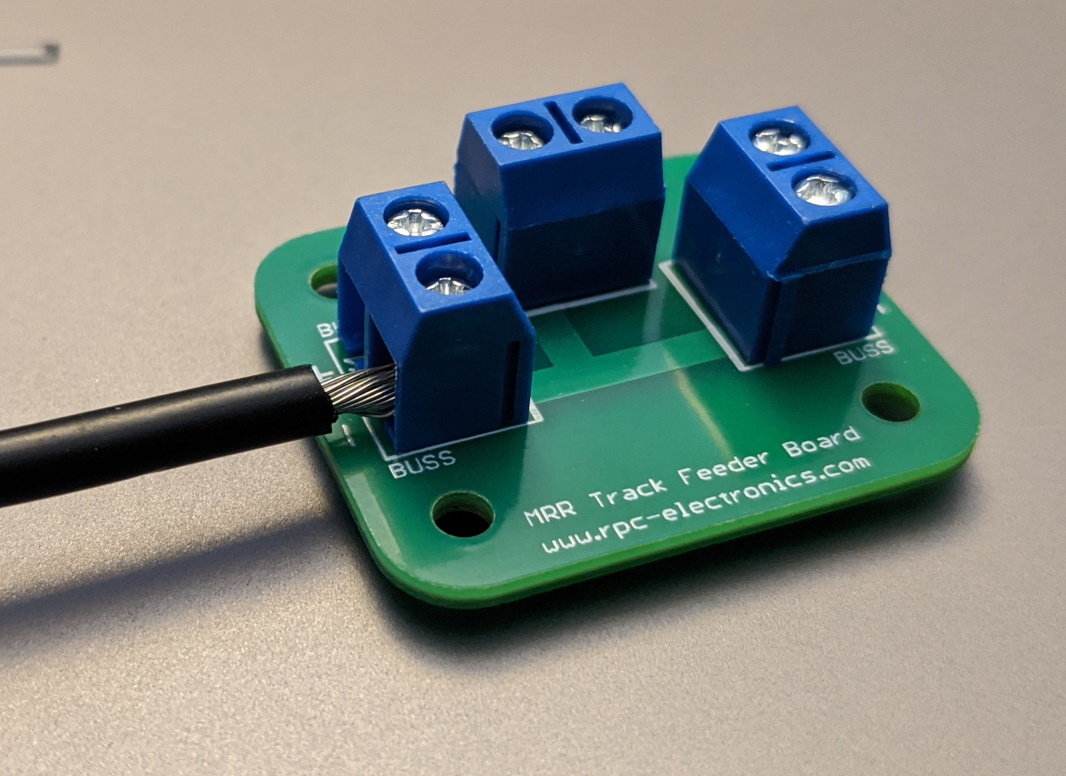

A common question we get is "How large of a wire can your boards use?". We has successfully used up to 14 AWG stranded wire in our Track Feeder Boards. Below is a picture of a test fitting.

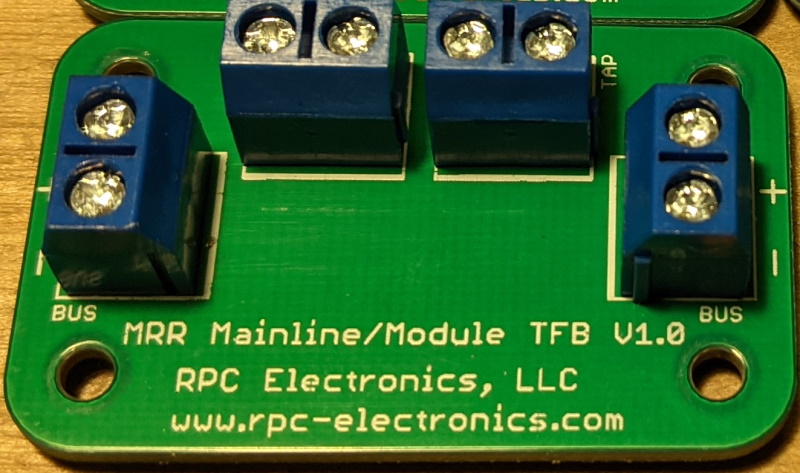

Our Track Feeder Mainline/Module board is meant to reduce the number of track feeder boards needed when connecting your bus to dual mainlines on a layout. Use this module in place of two of our single (above) modules. This product is also a great match for TTrak builders. Use a single board to feed both sections of track and run a single feed out the backside of the module to tie into the wiring network for the layout.

Track Feeder Mainline/Module - $4.00 + Shipping --- Part #MRRTFMLM

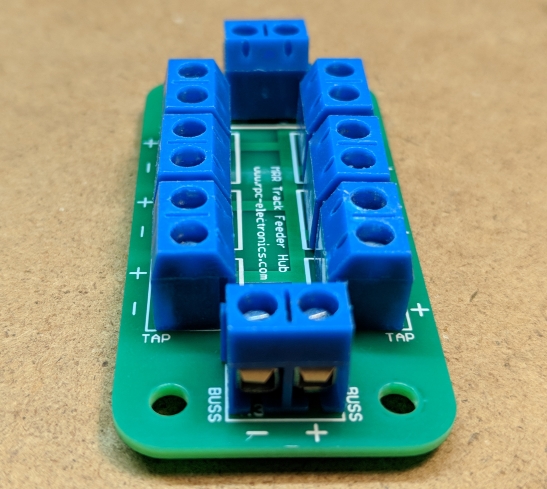

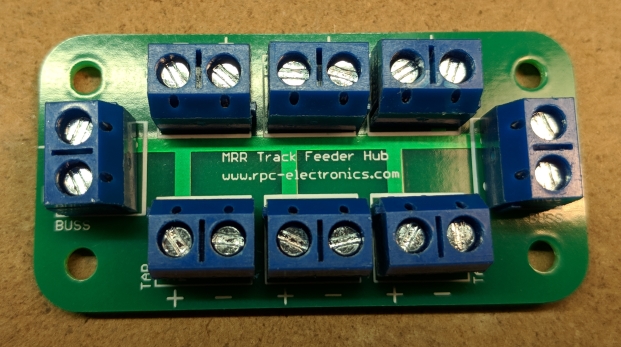

Our Track Feeder Hub works just like our simple feeder board above, but gives you six points of connection for areas requiring more track feeders, such as yards, industry spurs or even spots with several turnouts. Tie the hub board right into your bus string for an easy way to get power to where it needs to be, in more places!

Track Feeder Hub Module - $12.00 + Shipping --- Part #MRRTFHUB

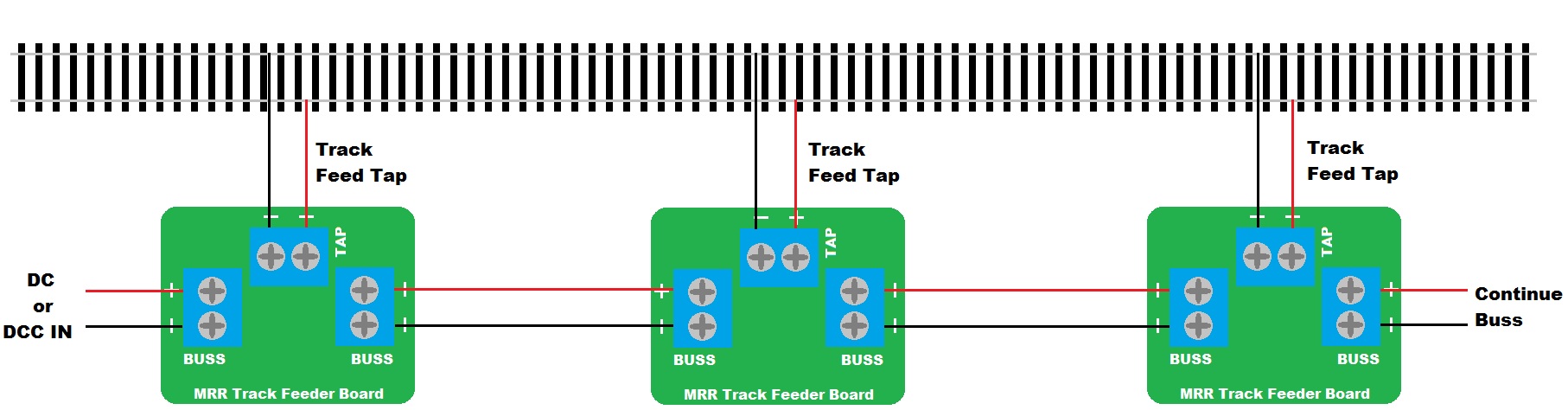

Basic configuration for single string/single power source
