Servo Turnout Switch Board

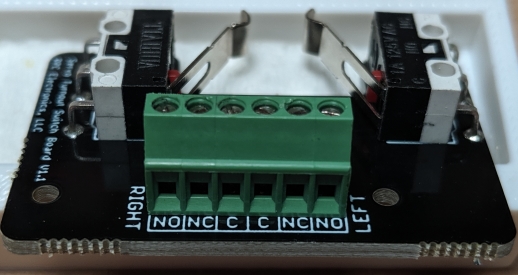

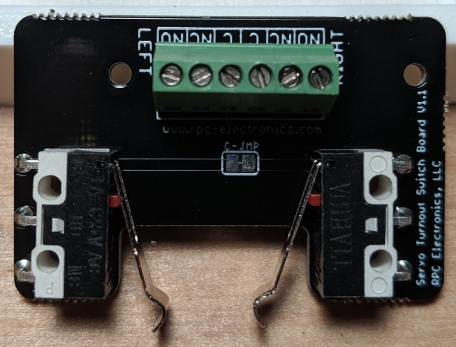

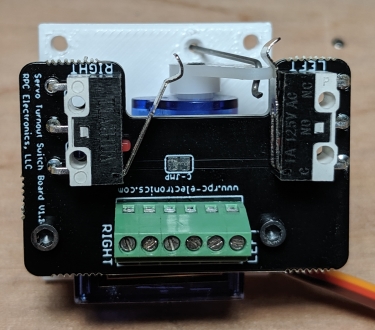

Our Servo Turnout Switch Board makes signal and DCC routing easy when using standard servos for controlling your turnouts. No goofy double-sided tape or wedging of switches to make it work! Features two independent SPDT switches to detect either side of the servo arm throw. Common terminals can be separate or tied together based on your electrical needs. Designed to be easy to connect using a six position solderless terminal block. See below for details on our 3D printed bracket to make a complete unit.

WARNING: Customer must supply the servo driver solution ie. DCC decoder, manual control, ect.

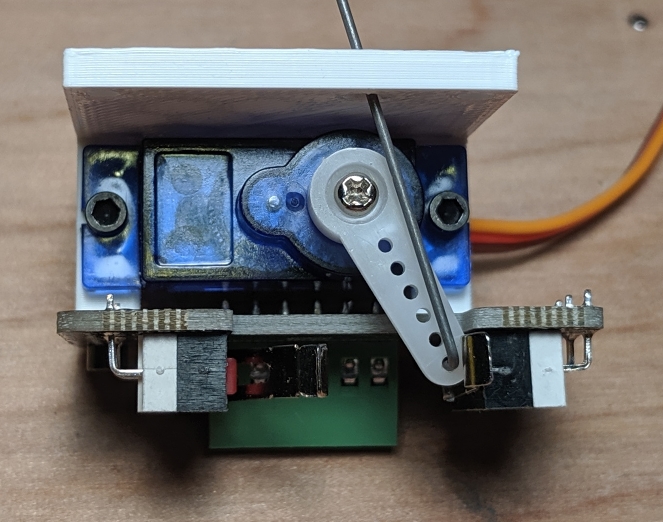

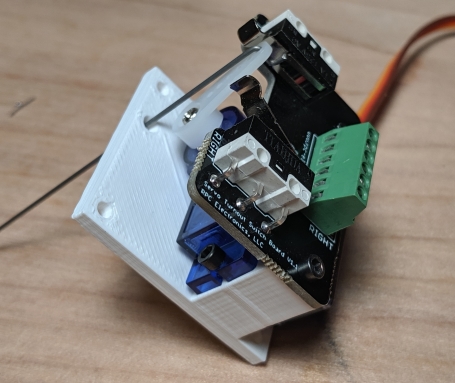

We're offering a complete package with the Servo Switch Board, 3D printed bracket and sub-micro servo
(Customer supplied DCC decoder)

Servo Turnout Switch Board - $6.00 + Shipping --- Part #STSB

Servo Turnout Switch Board and 3D Printed Bracket Combo - $12.00 + Shipping --- Part #STSBCOMBO1

Servo Turnout Switch Board, 3D Printed Bracket and Sub-Micro Servo - $16.00 + Shipping --- Part #STSBCOMBO2
