TYT TH-9000D MiniDIN Packet Adapter

Our TH-9000D mini DIN packet adapter is designed to install directly in the place of a pre-milled space on the back of the TH-9000D milled for a DB style connector. With our adapter, you can easily add a mini DIN packet port to the radio for 1200 baud packet by utilizing the internal audio/data connector on the main board. (9600 may be possible, but would need to be wired internally differently)

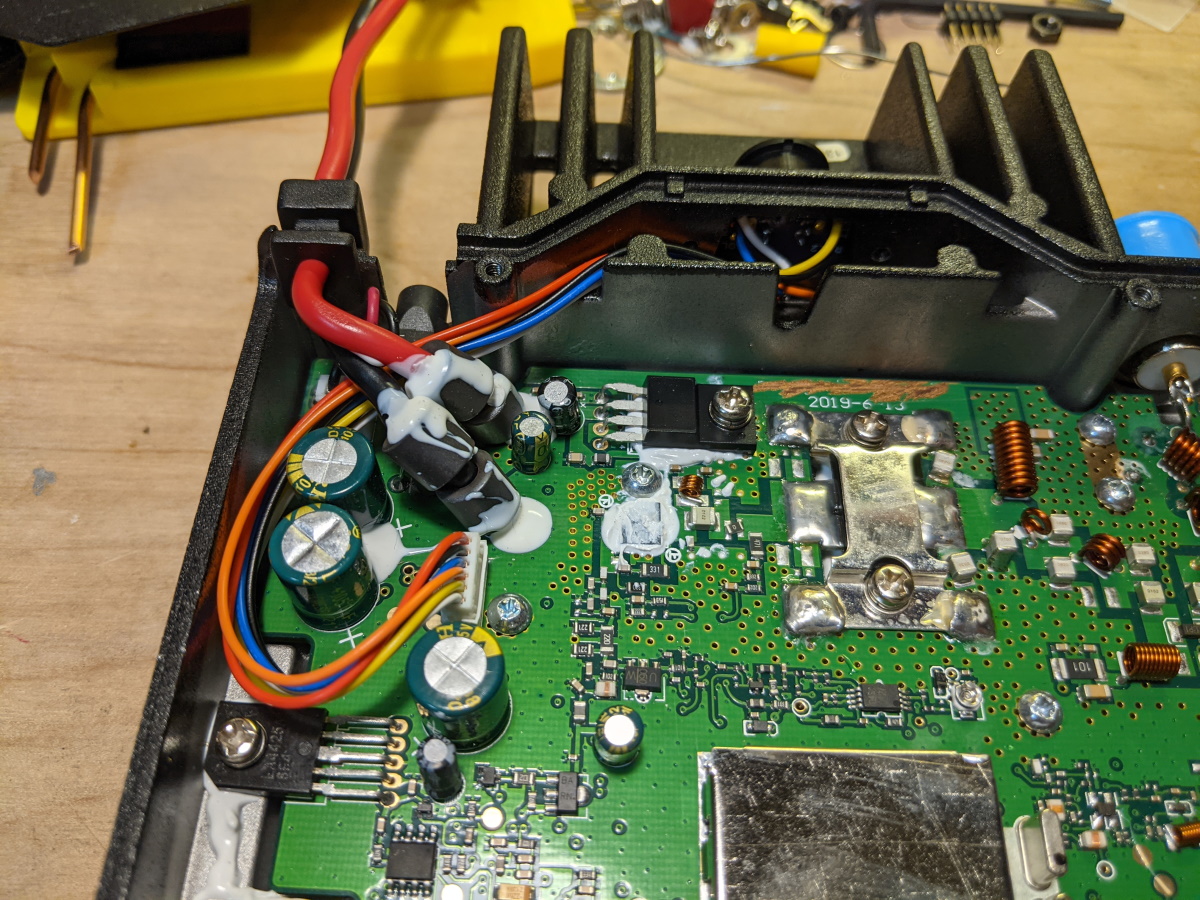

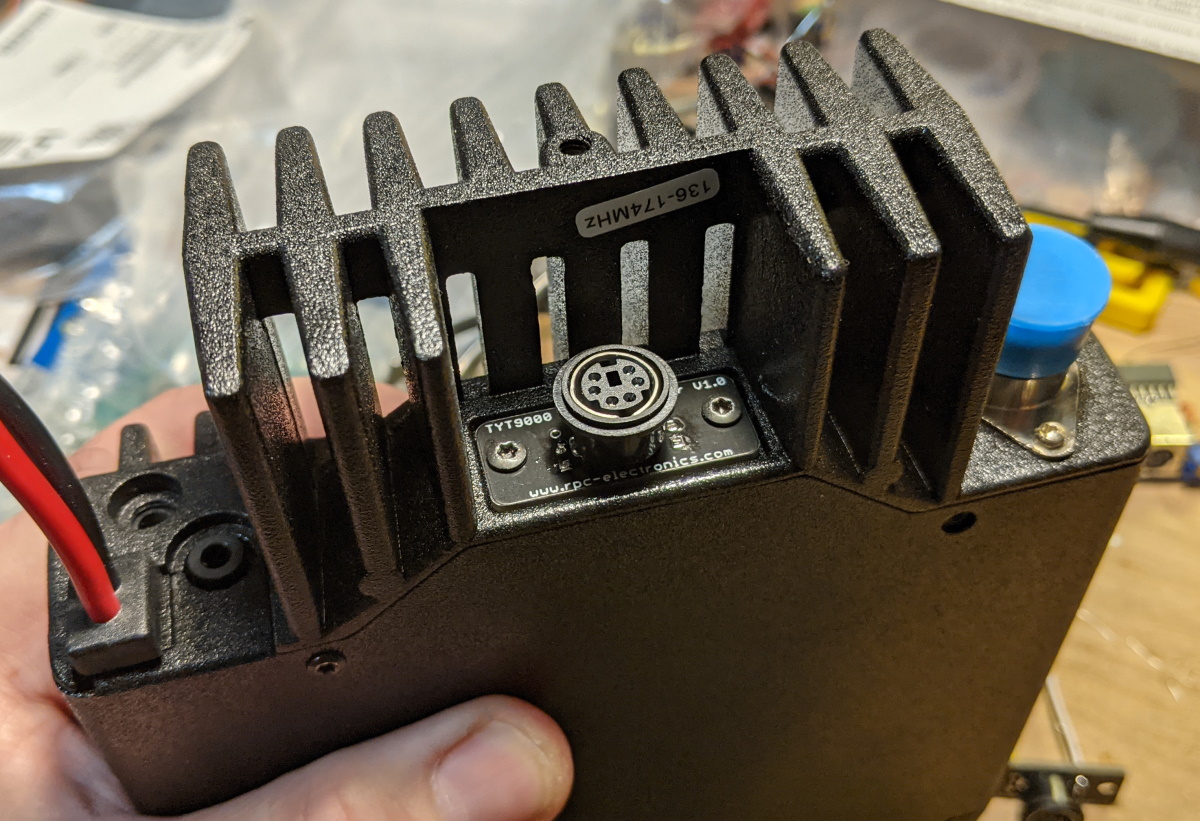

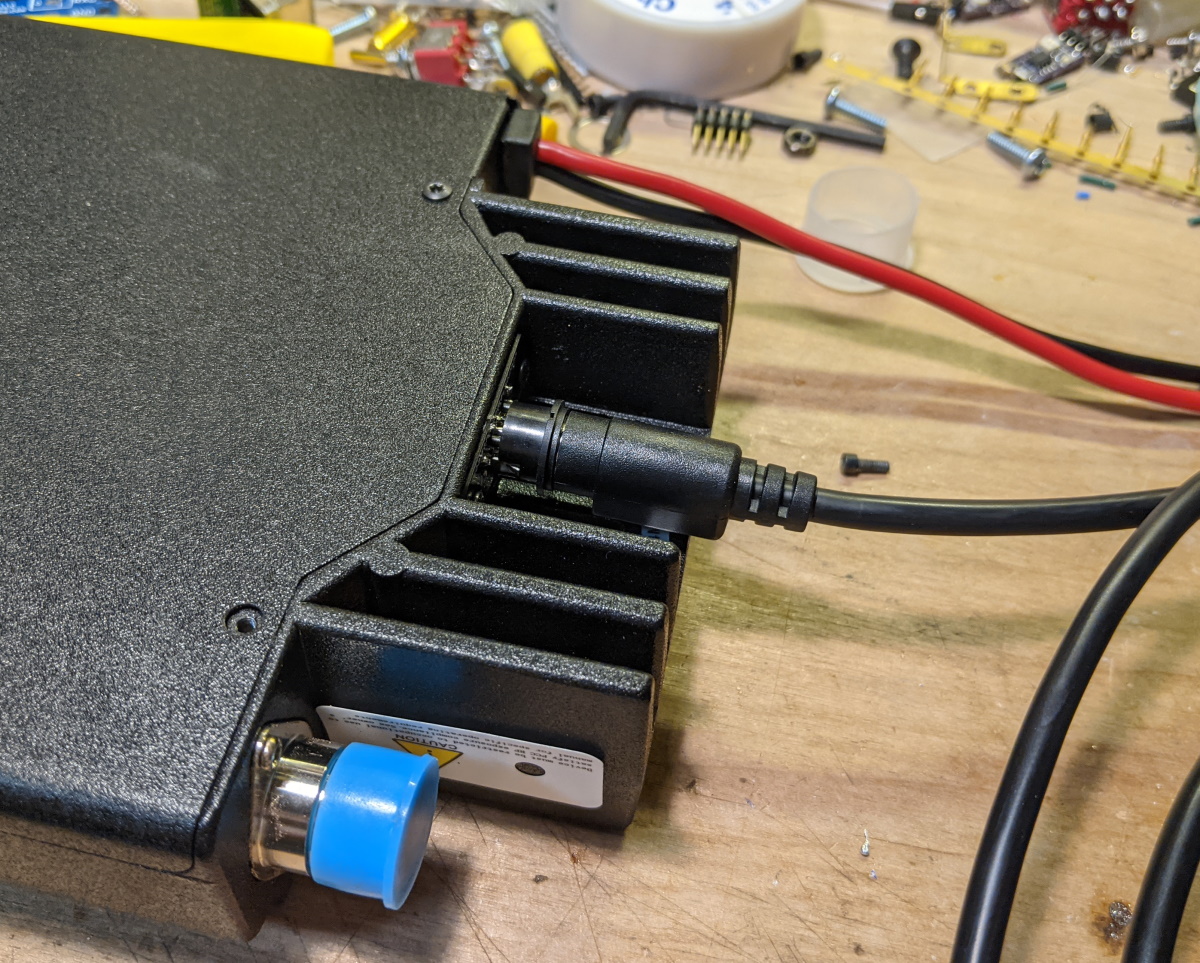

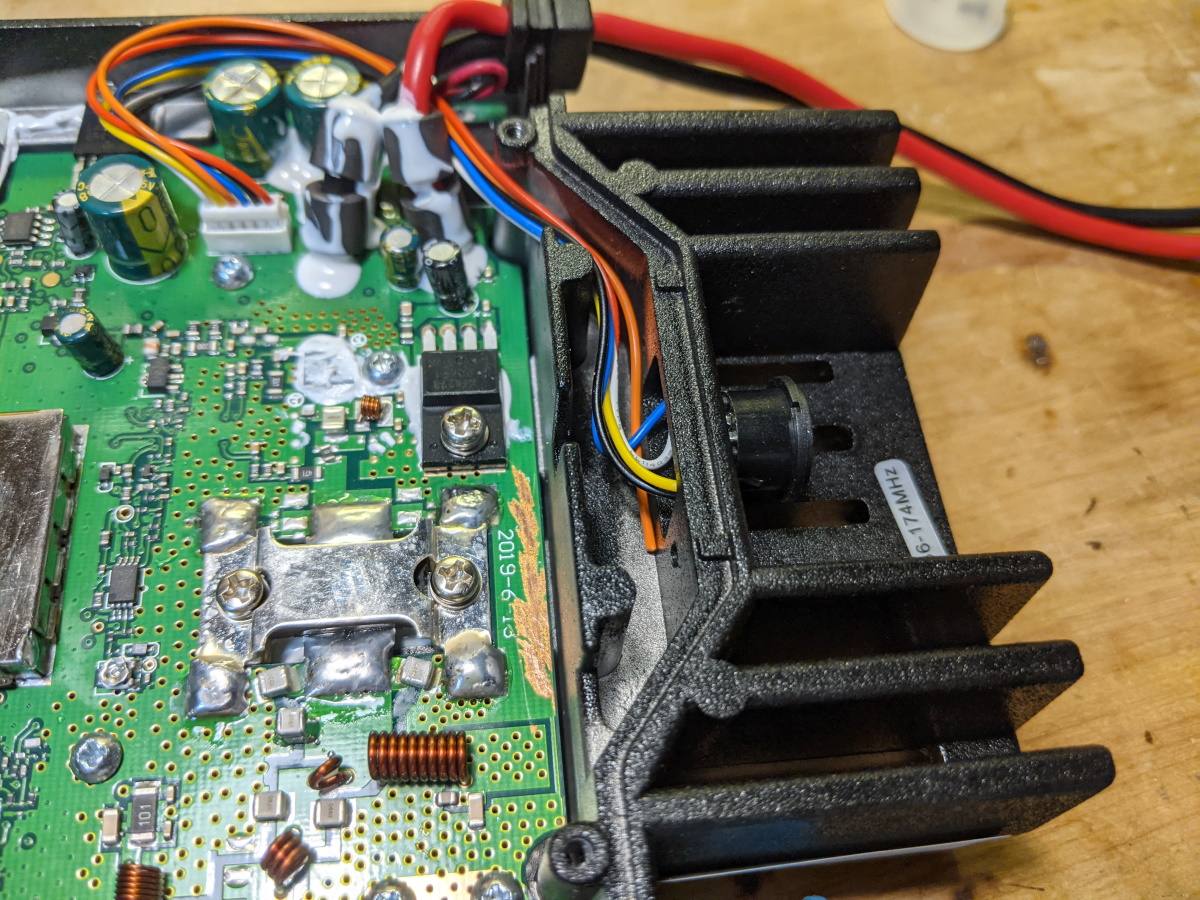

Installation Example:

Features:

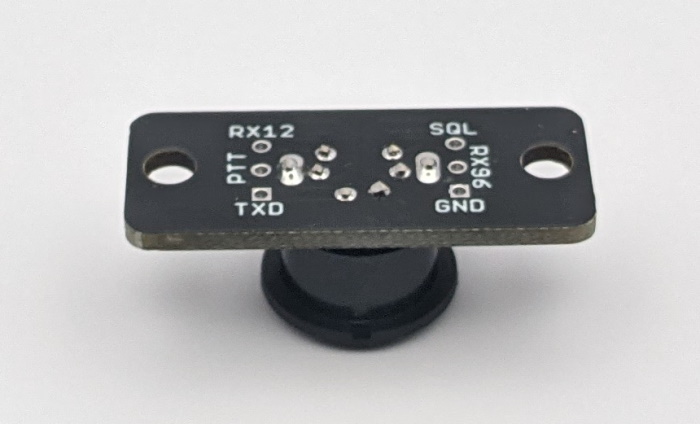

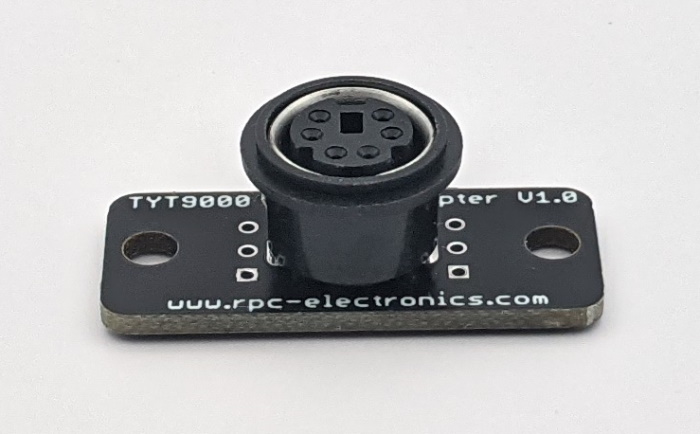

Mini DIN 6 pin port with industry standard pinout
Designed to fit in DB9 port cutout of radio chassis
For 1200 baud uses internal audio/data connector installed at the factory

TYT TH-9000D MiniDIN Packet Adapter

TYT TH-9000D Mini DIN Adapter WITH Wire Harness - $12.00 + Shipping --- Part #TYTMDWWH

TYT TH-9000D Mini DIN Adapter WITHOUT Wire Harness - $6.00 + Shipping --- Part #TYTMDWOWH
