ESP32 LoRA-Pi Modem

The ESP32 LoRA-Pi is a KISS LoRA modem and 1W UHF transciever all on one module. It's physical size and form-factor is designed to sit on top of a Raspberry Pi. However, it's USB interface allows it to be used with virtually any device that has a USB port and can run software that can speak the KISS protocol.
Key Features:
  • Native KISS protocol

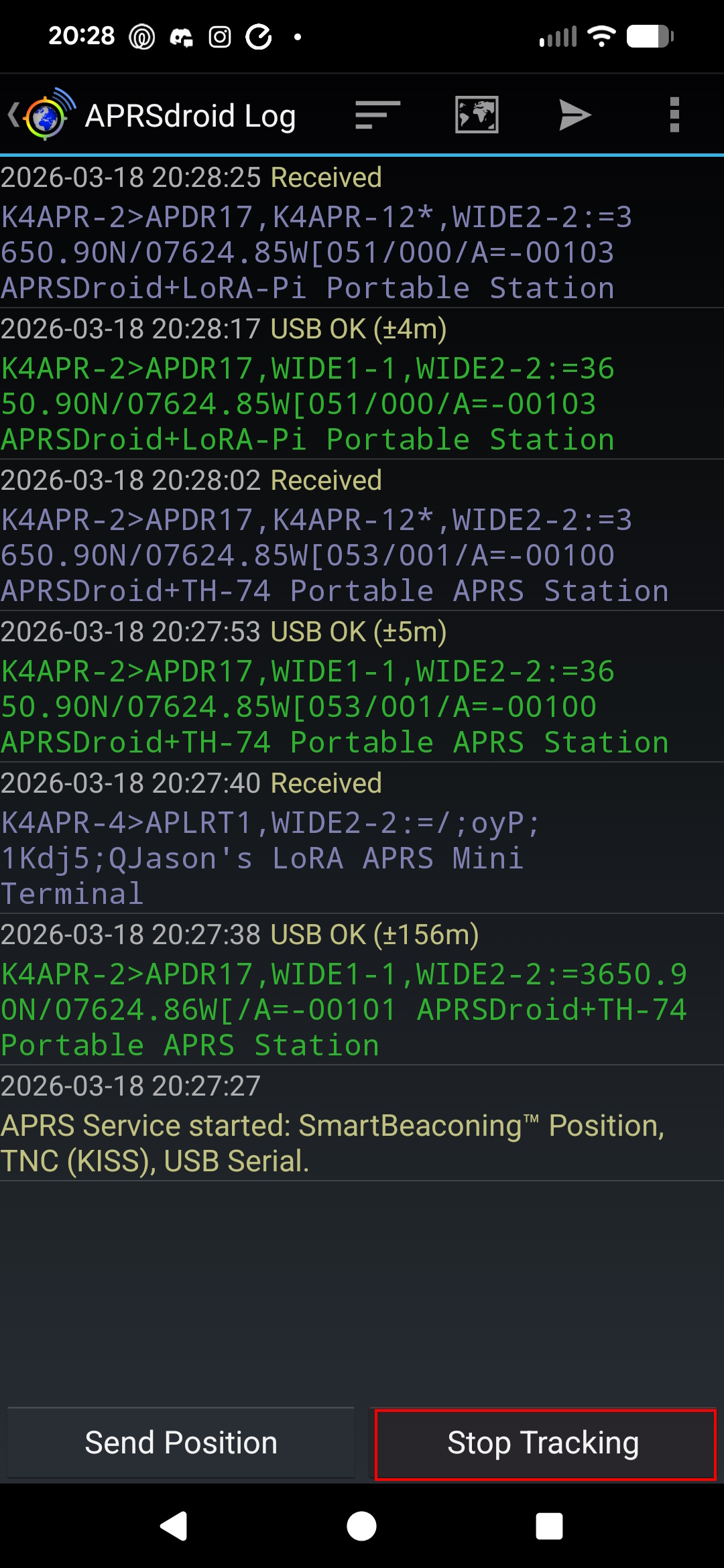

  • Use it for APRS, WinLink, WinTNC and so much more
  • 1 Watt UHF Transceiver on-board (Antenna NOT INCLUDED)
  • USB-C, Bluetooth and direct UART interface for Raspberry Pi options
  • Web Config via Wifi (future feature)
  • Bluetooth/Wifi antenna included
  • Comes pre-configured for KISS operation via USB out of the box

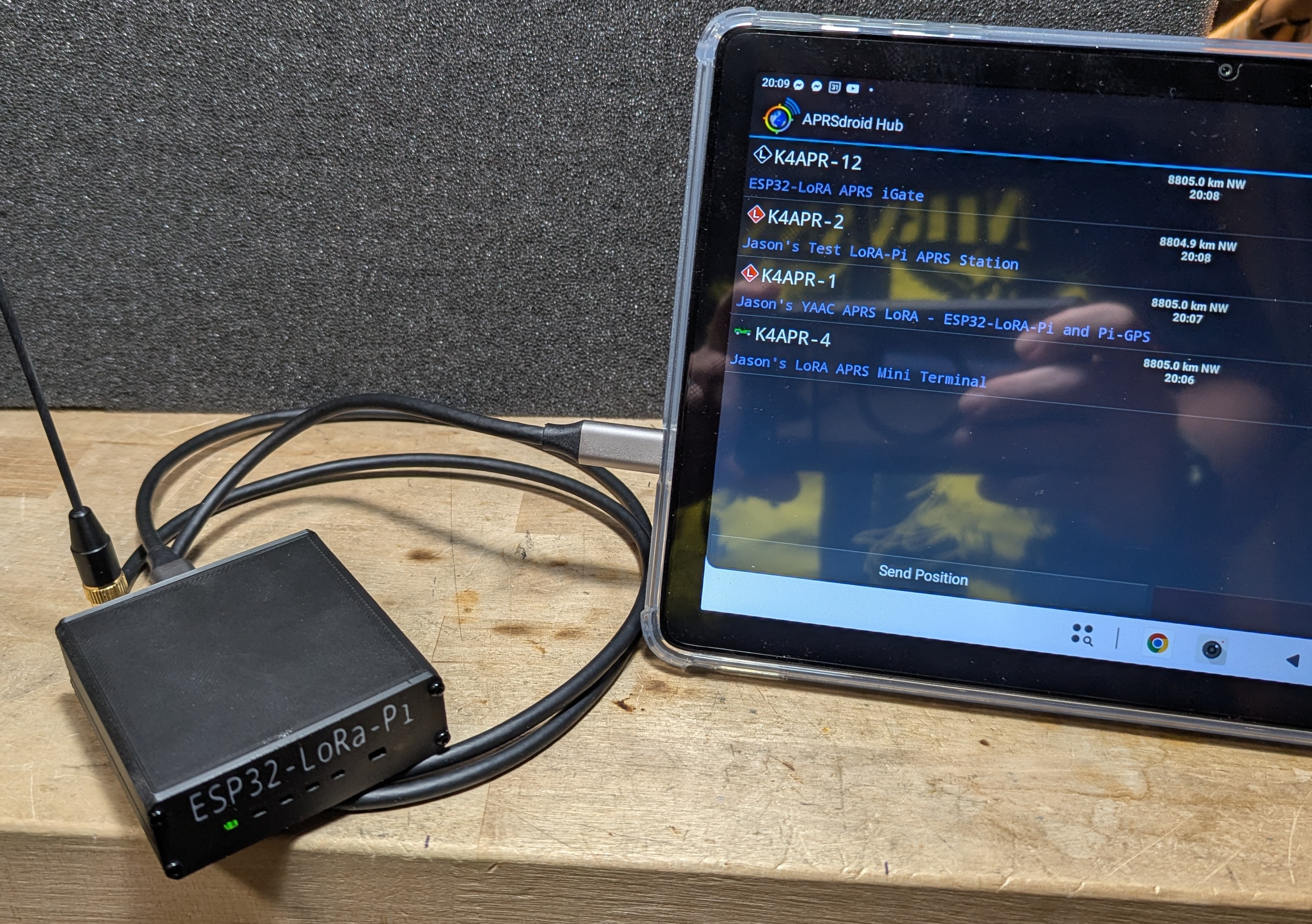

  • Connect directly to computer, phone and/or tablet via USB
  • Optional 3D printed case (see below)
  • Optional UART connector and stand-offs kit for use with Raspberry Pi (see below)

User's Manual Download:

ESP32 LoRA-Pi Manual

Purchase Price Includes:

  • LoRA-Pi Modem
  • Wifi Antenna
  • *** 3D printed case is OPTIONAL, NOT INCLUDED (See below to add on to order)

ESP32 LoRA-Pi Modem - $65.00 + Shipping --- Part #ESP32LORAPI

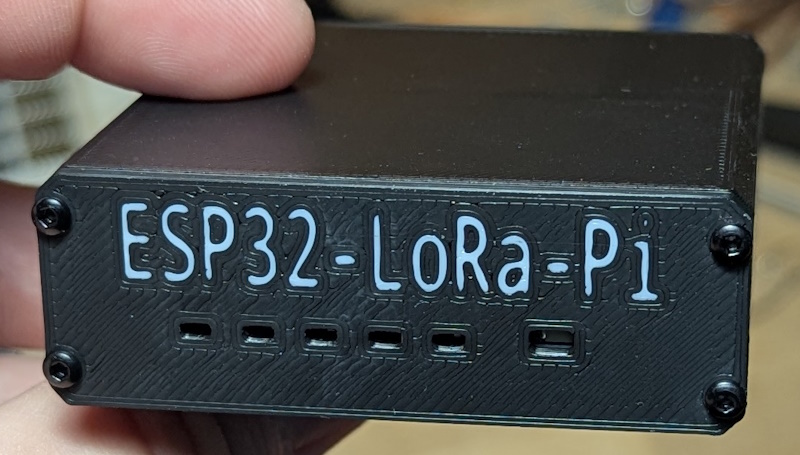

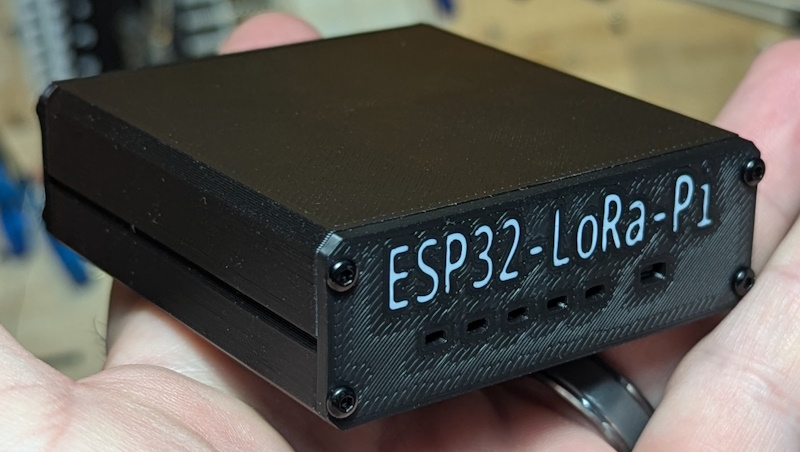

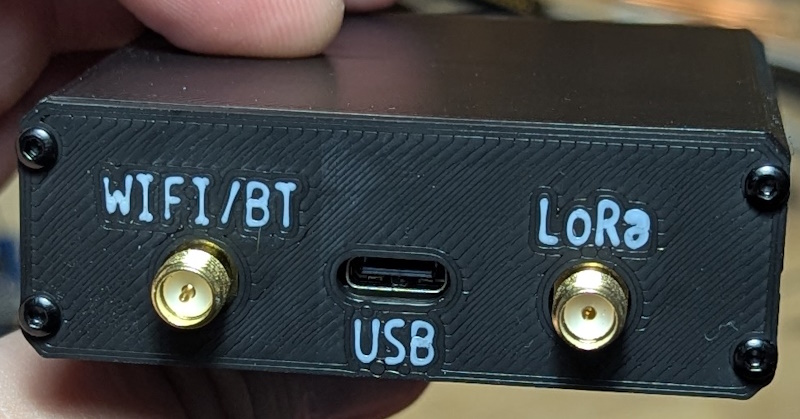

Optional 3D Printed Case - $10.00 + Shipping --- Part #LORAPICASE

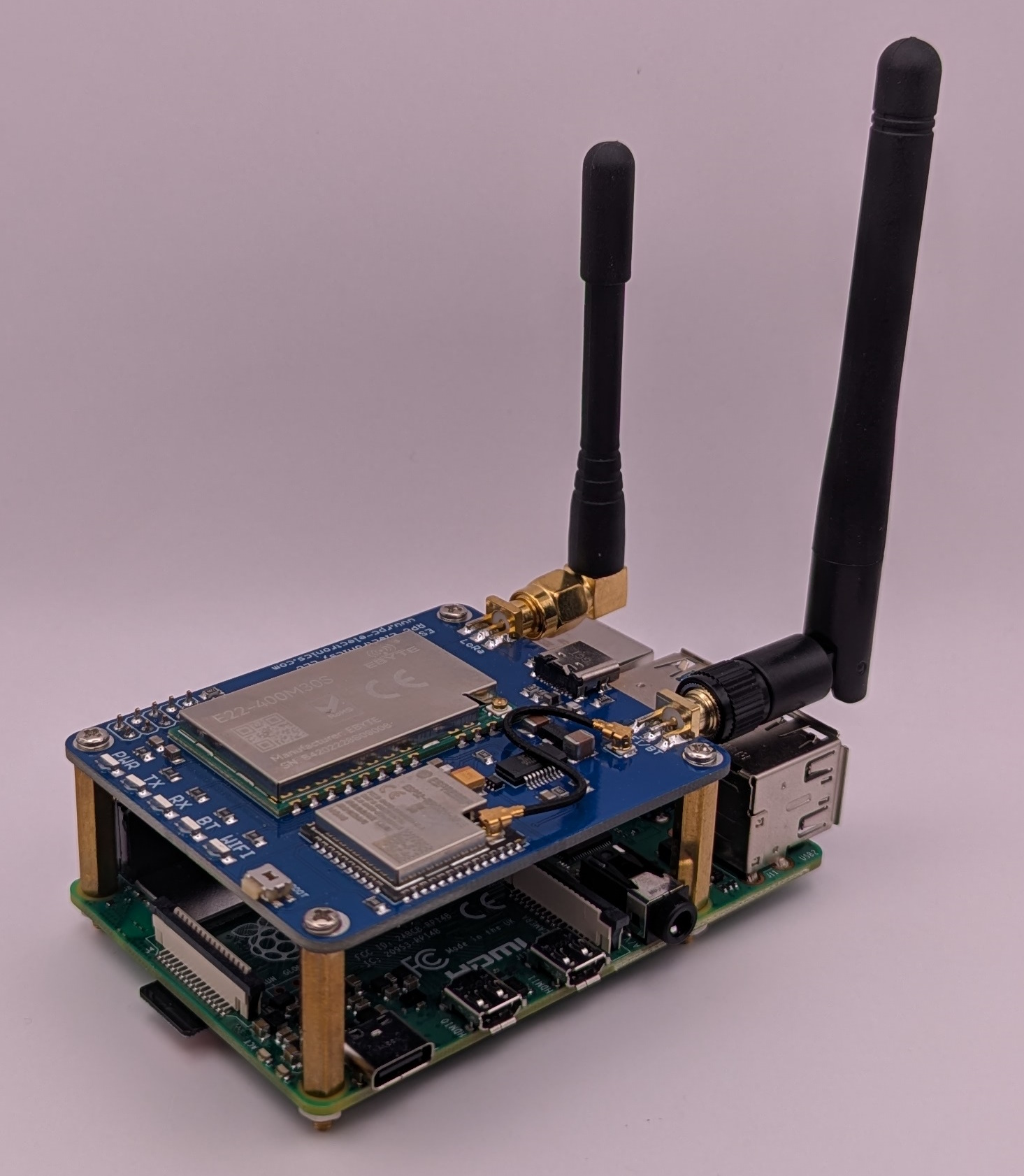

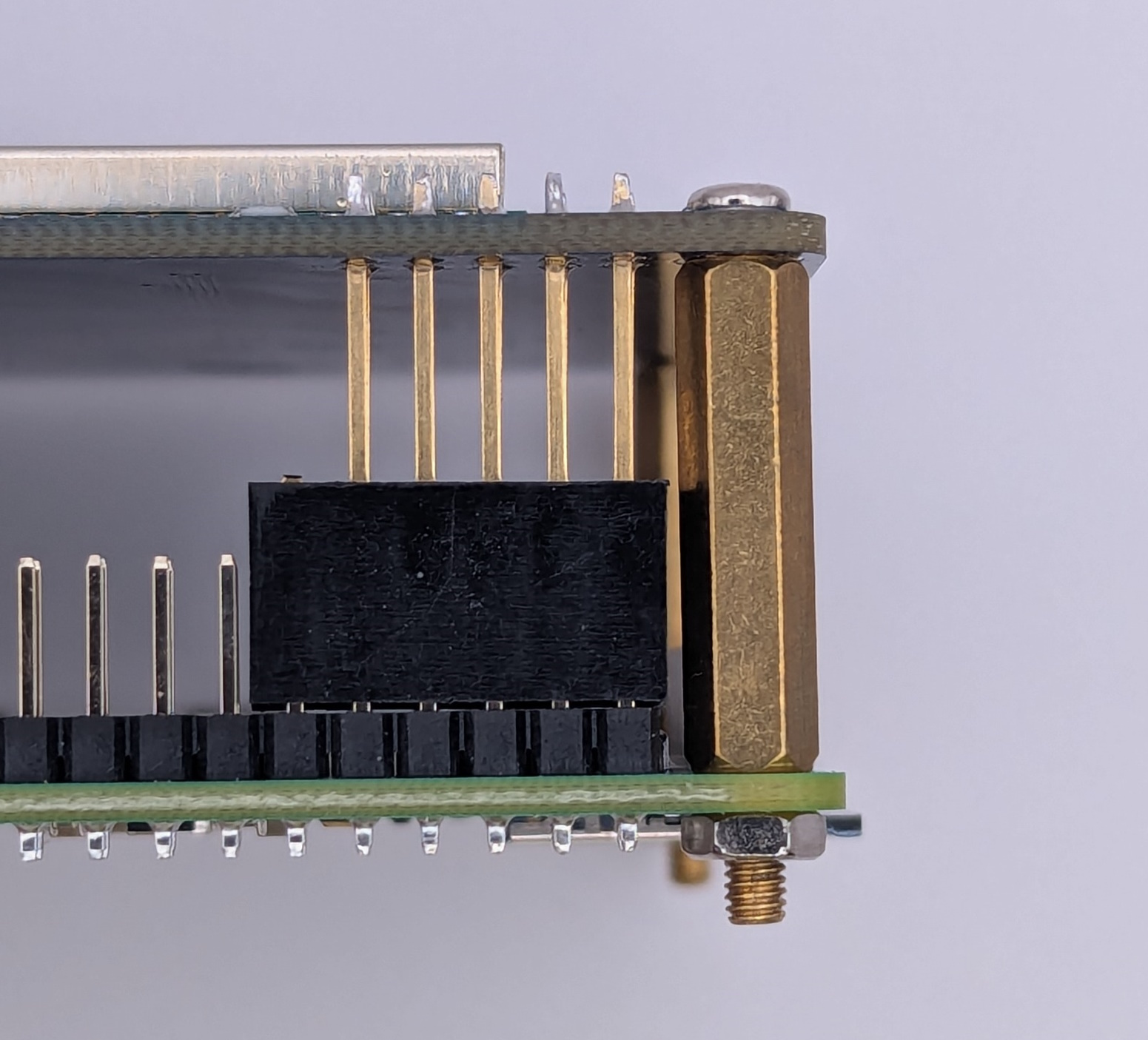

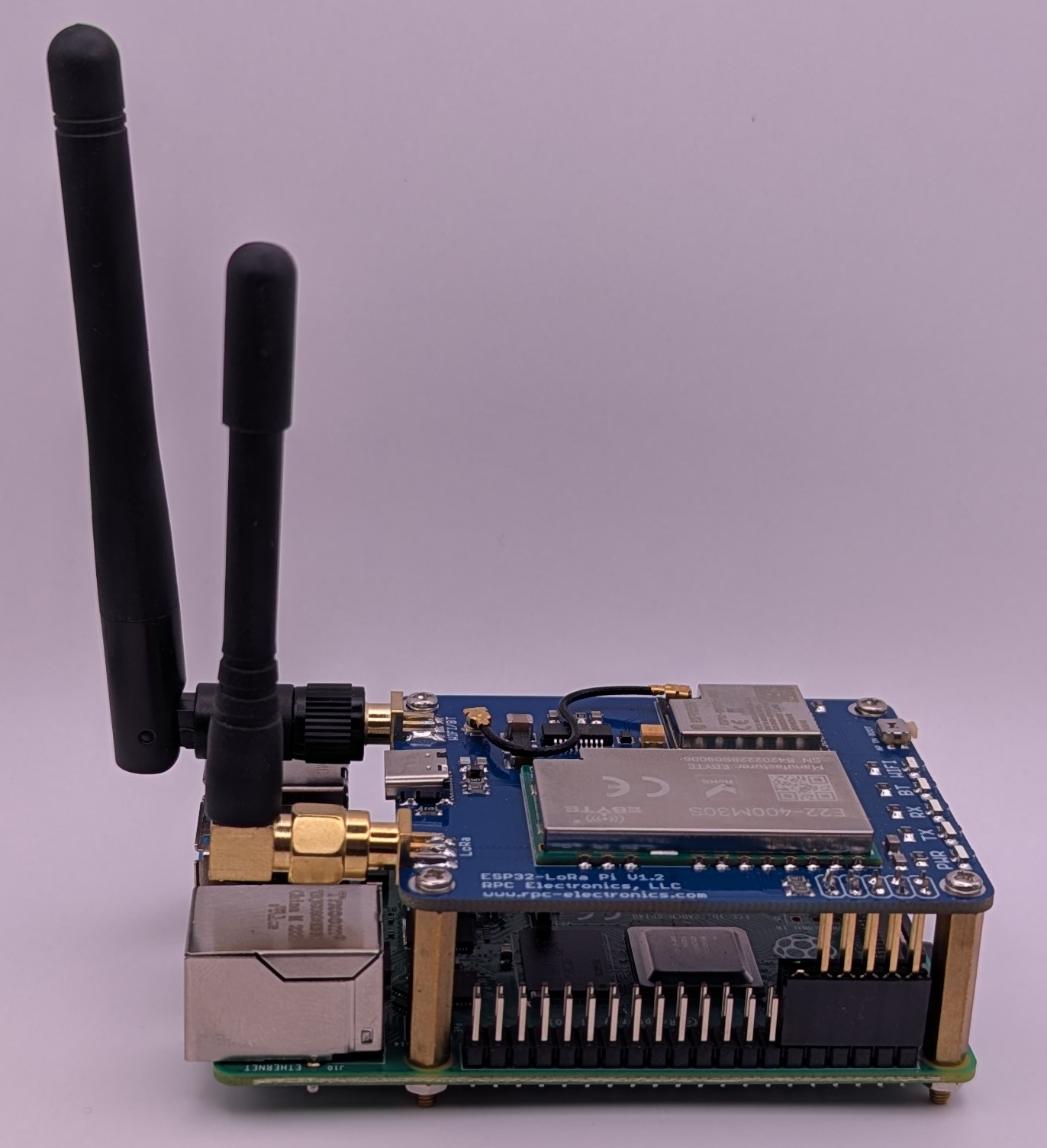

Optional UART Connector and Stand-offs Kit - $5.00 + Shipping --- Part #LORAPIUCSOKIT
