• The G540 Interface is an easy way to clean up your wiring to and from the Geckdrive G540 CNC stepper motor controller
• Available in 12VDC and 48VDC versions
• Direct terminal block wiring to the G540 controller

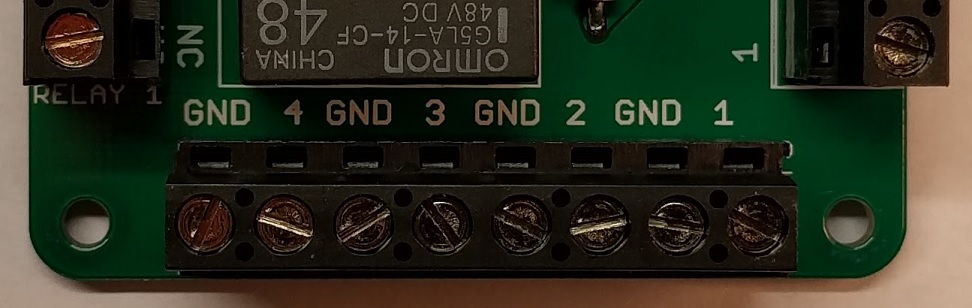

• All inputs are paired with grounds for easy wiring of multiple switches, ect.
• Separate terminal block for E-STOP connection
• Two on-board relays for the G540 output control function, with diode protection

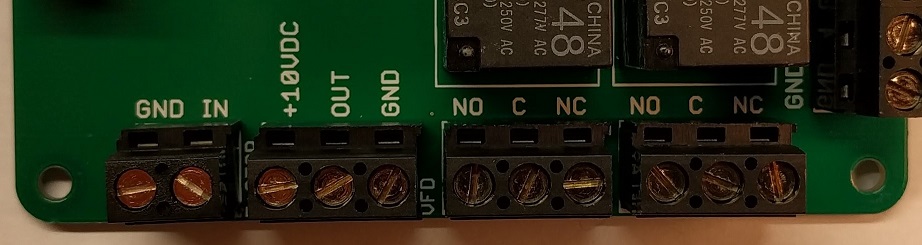

• Terminal block for VFD connection

---

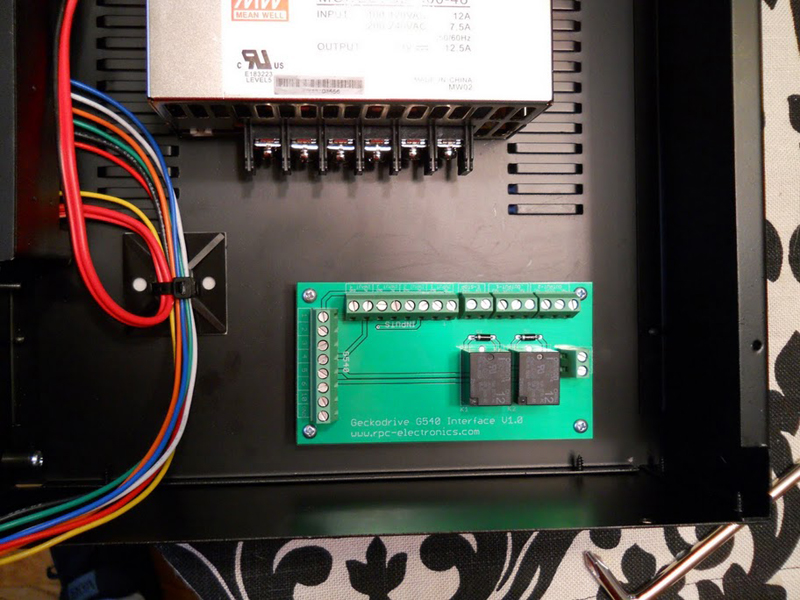

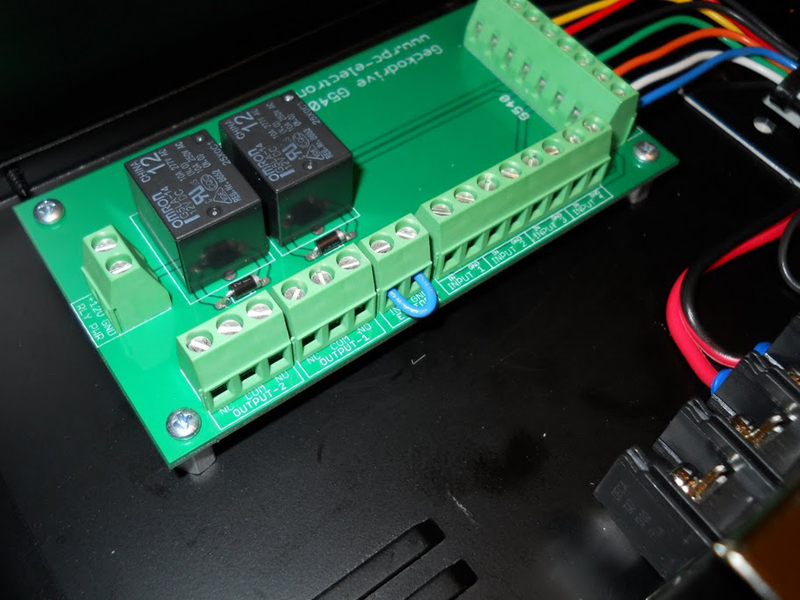

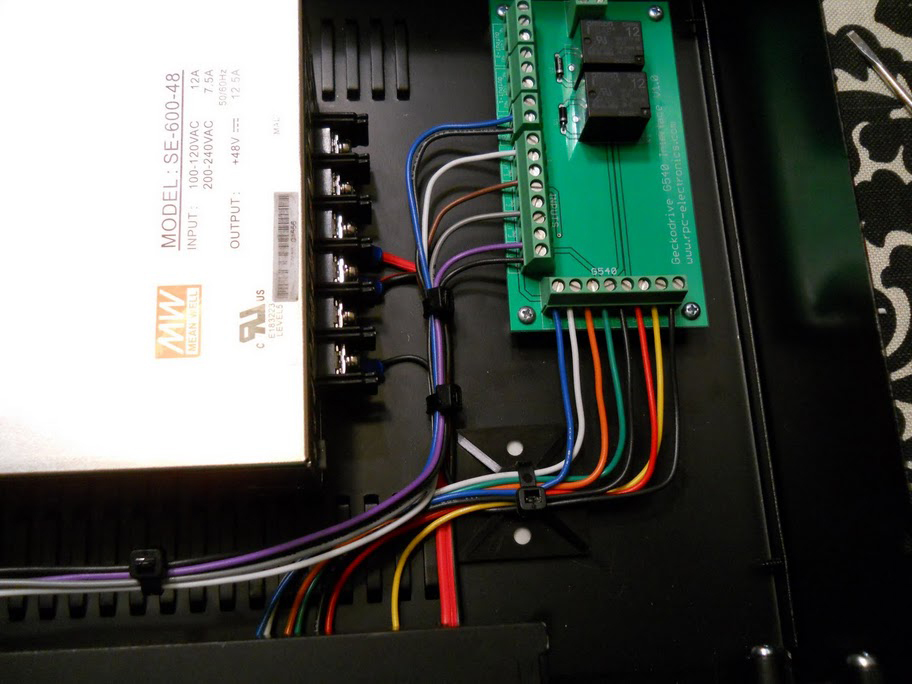

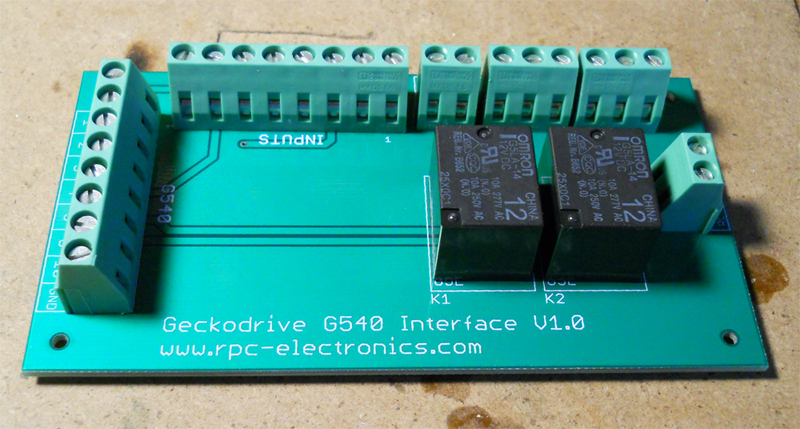

Example installation (V1.0 board shown)

Downloads
• Mechanical Drawing(PDF Format)

G540 Interface (12V Relays) - G540INT12V
$35.00 + Shipping

G540 Interface (48V Relays) - G540INT48V
$35.00 + Shipping
